| Wide probing range is available with supplied extension rods |
|---|
| Bottom surface of the base is hardened ground and lapped for highest degree of flatness. |
| Designed with a back plunger type dial indicator for upward facing readings. (7231, 7237, 7238) |
| Range: 0-10mm |
| Stroke: 10mm |
| Graduations: .01mm |
| Accuracy: +/- .015mm |
| Flatness: 0.005mm |
| Base Dimension: 25mm Diameter |
| Contact Point: Carbide |
| Measuring Force: 1.4N |

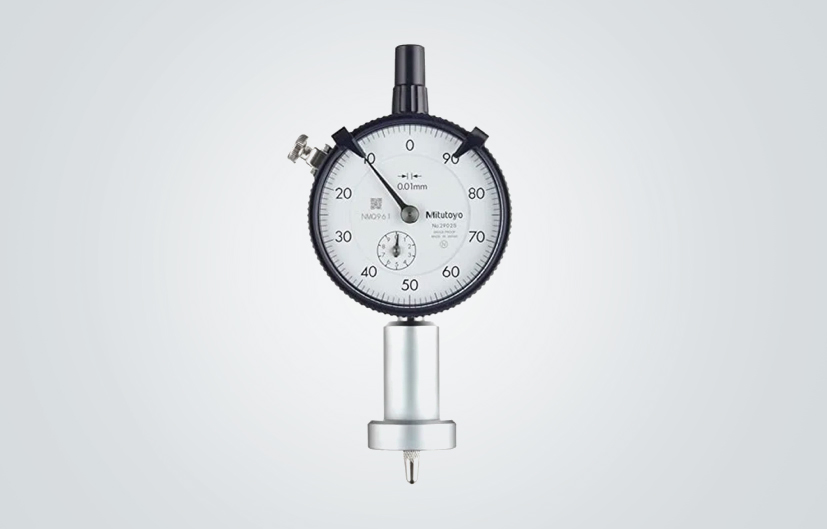

Mitutoyo Dial Depth Guage is well known for its accuracy and performance. Used in all sections, where ever accurate results are expected
